Model No. | DACN0007 | DACN0008 | DACN0009 | DACN0018 |
---|---|---|---|---|
Dimension (mm) | 900 x 230 x 212 | 1200 x 230 x 212 | 1500 x 230 x 212 | 1800 x 230 x 212 |
Max. Air Velocity At Nozzle | 21 m/s | 21 m/s | 21 m/s | 21 m/s |
Noise Level DB | 50 - 70 db | 50 - 70 db | 50 - 70 db | 50 - 70 db |
Body Material | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
Width Size | 3 Feet | 4 Feet | 5 Feet | 6 Feet |
No. Of Blowers | 3 | 4 | 5 | 6 |
No. Of Motors | 2 | 2 | 3 | 3 |
HP | 0.56 | 0.76 | 0.95 | 1.12 |
Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
No. Of Shafts | 1 Single + 1 Double | 2 Double | 1 Single + 2 Double | 3 Double |
Power Wattage | 410W | 560W | 700W | 820W |
Phase | Single | Single | Single | Single |
RPM (Max/Min) | 2700 / 2100 | 2700 / 2100 | 2700 / 2100 | 2700 / 2100 |
Blower Material | ABS | ABS | ABS | ABS |
CFM | 825 | 1100 | 1380 | 1490 |
% Insect / Dust Rejection | 75% | 75% | 75% | 75% |
Effective Height | 7-10 Feet | 7-10 Feet | 7-10 Feet | 7-10 Feet |
Weight Kgs. | 19 | 22 | 26 | 32 |

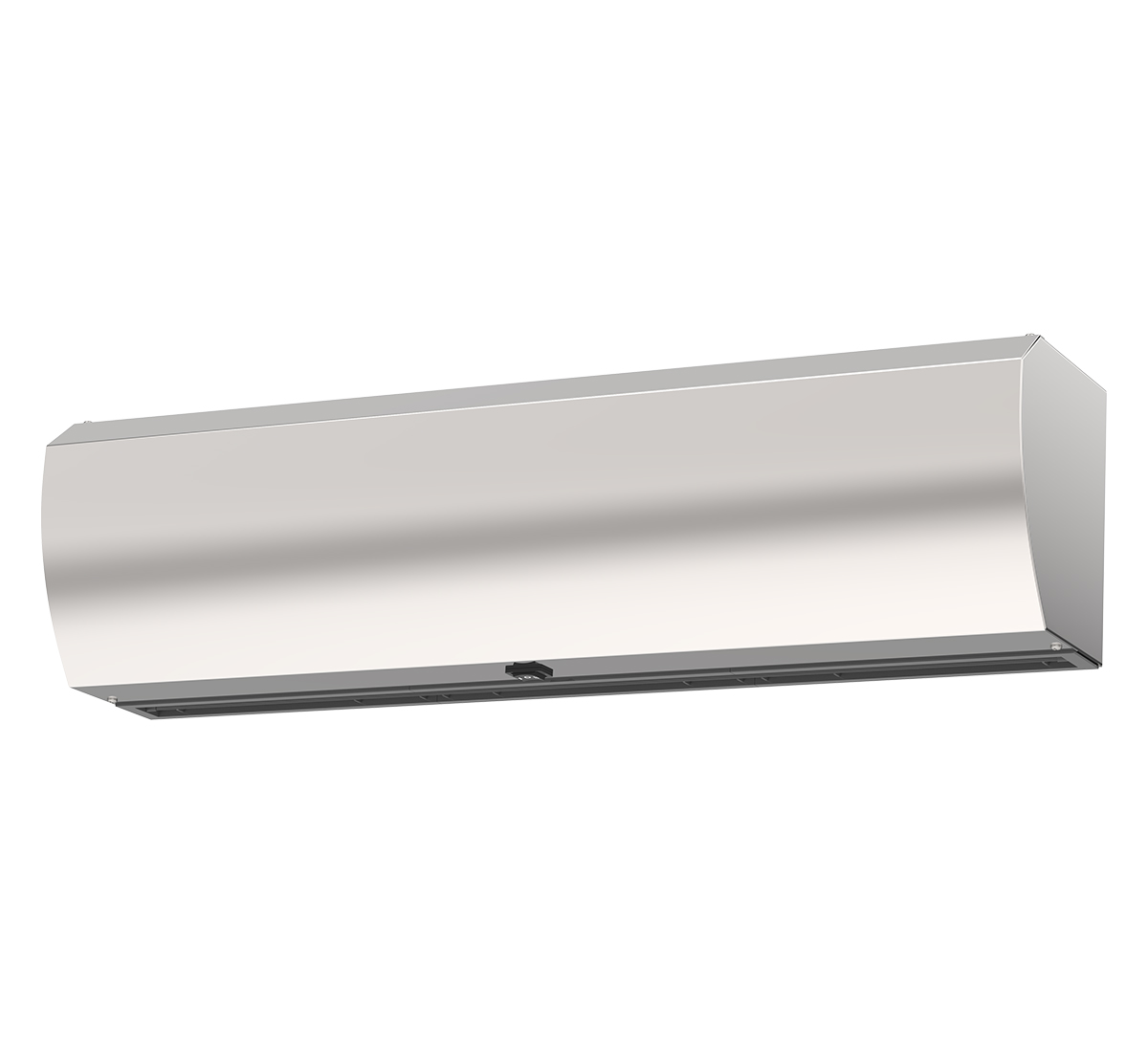

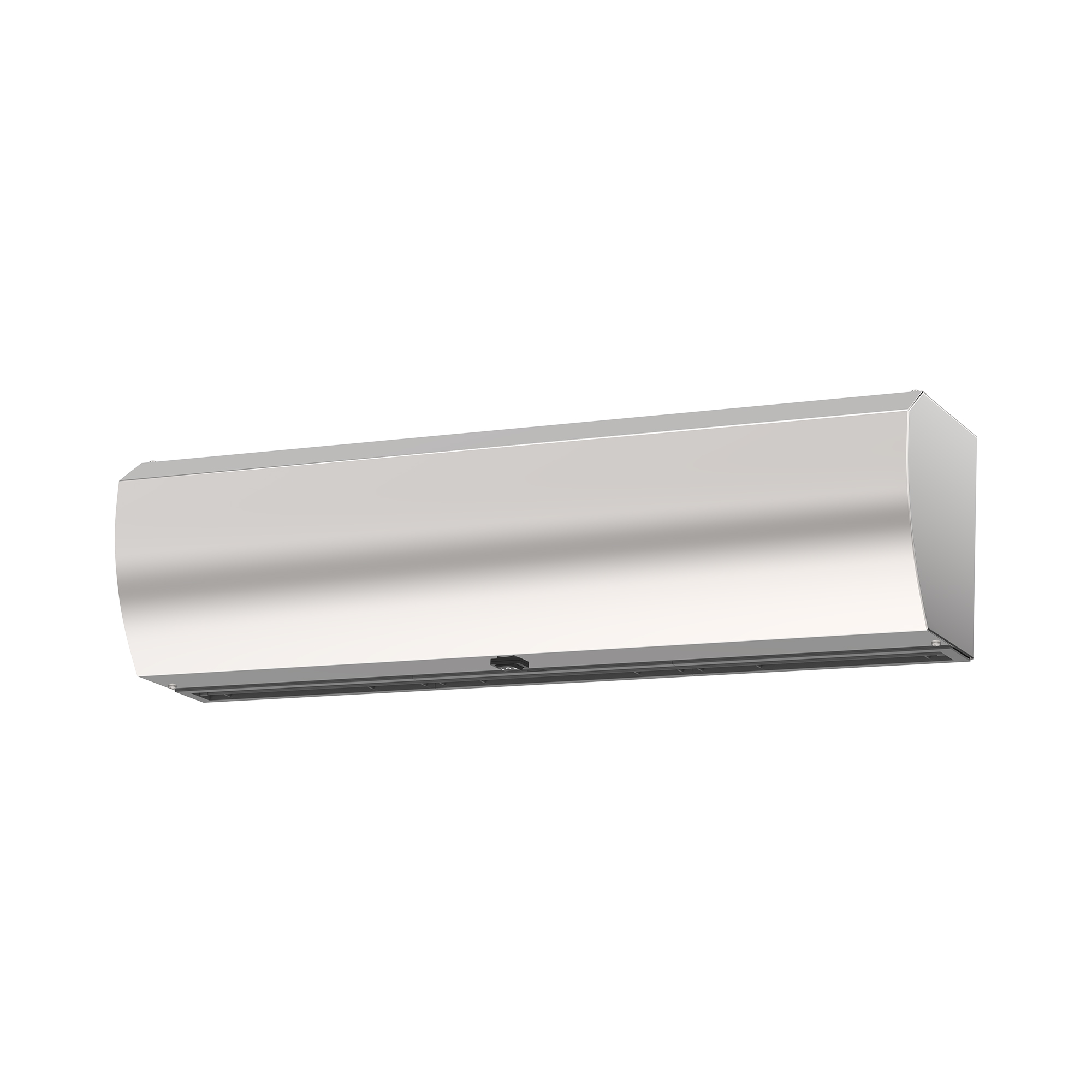

The Dolphy Stainless Steel Air Curtain is a powerful solution to keep your indoor space clean and comfortable. Made with durable SS 304 stainless steel, this SS air curtain is perfect for commercial entrances, helping to block dust, insects, and outside air while reducing energy costs. With a high air velocity of 21 m/s and effective coverage for doors up to 10 feet high, it ensures strong airflow with low noise (50–70 dB).
Available in 3ft to 6ft sizes, this industrial door air curtain features high-performance motors, ABS blowers, and single-phase operation, making it ideal for shops, malls, hotels, and more. Whether you’re looking for air curtain manufacturers, an air curtain supplier in India, or want to know the best air curtain price, Dolphy offers quality and value.
Also useful as an commercial air cutter machine, this product is competitively priced to suit your needs.
