Model No. | DACN0001 | DACN0002 | DACN0003 |
---|---|---|---|
Dimension (mm) | 900 x 230 x 220 | 1200 x 230 x 220 | 1500 x 230 x 220 |
Max. Air Velocity At Nozzle | 21 m/s | 21 m/s | 21 m/s |
Noise Level DB | 47 - 52 db | 49 - 54 db | 50 - 55 db |
Body Material | ABS | ABS | ABS |
Width Size | 3 Feet | 4 Feet | 5 Feet |
Remote | Yes | Yes | Yes |
Inbuilt Sensor | Yes | Yes | Yes |
No. Of Blowers | 3 | 4 | 5 |
No. Of Motors | 2 | 2 | 3 |
HP | 0.56 | 0.76 | 0.95 |
Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz |
No. Of Shafts | 1 Single + 1 Double | 2 Double | 1 Single + 2 Double |
Power Wattage | 410W | 560W | 700W |
Phase | Single | Single | Single |
RPM (Max/Min) | 2700 / 2100 | 2700 / 2100 | 2700 / 2100 |
Blower Material | ABS | ABS | ABS |
CFM | 825 | 1100 | 1380 |
Effective Height | 7-10 Feet | 7-10Feet | 7-10 Feet |
Weight Kgs | 15 | 19 | 25 |
Dolphy Air curtains that look like split AC comes with high quality international standards casing made in Metal body, which is sealed to resist dust going inside, and easy for cleaning & maintenance. Air Speed is with high & low two switch of speeds.

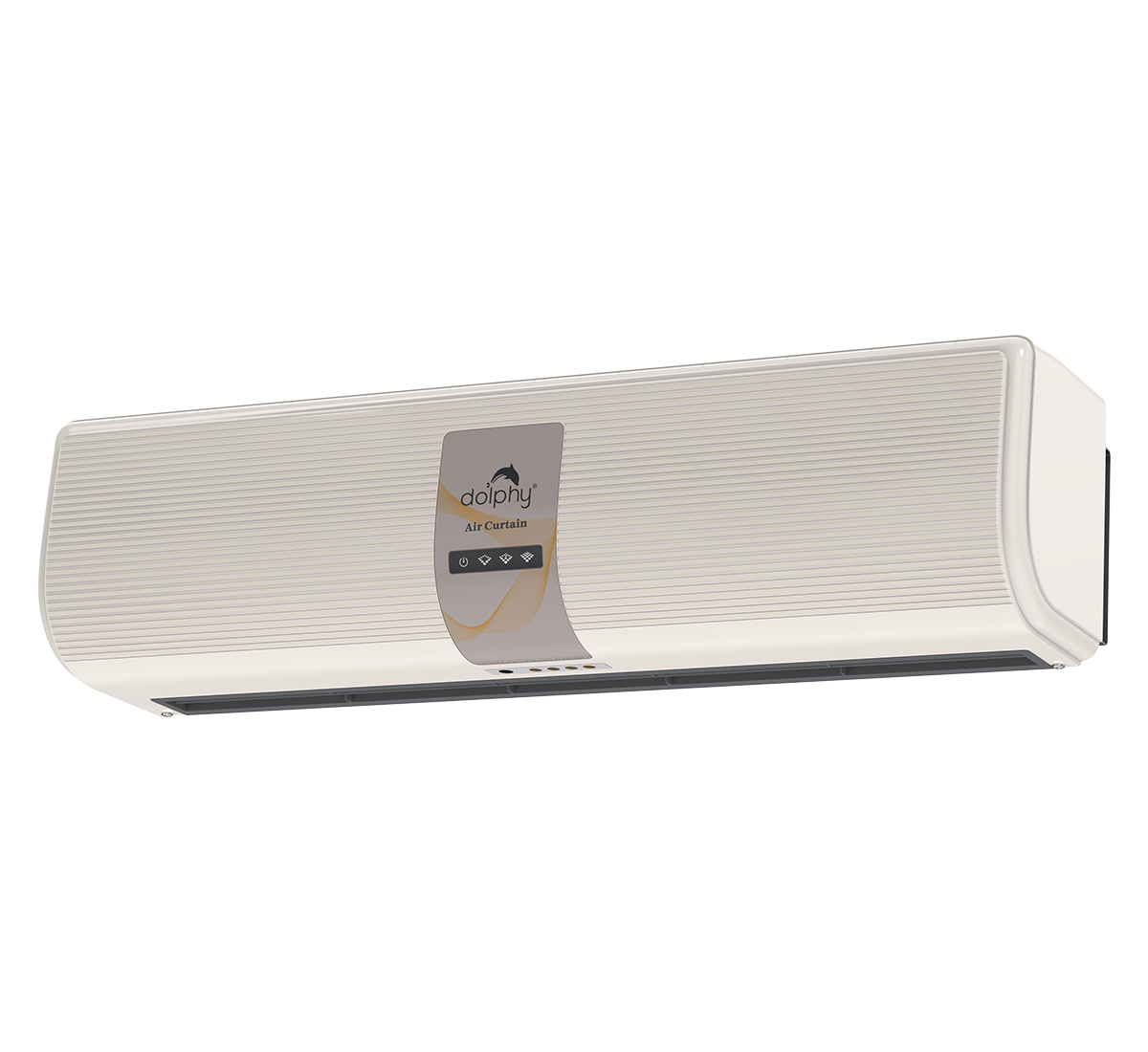

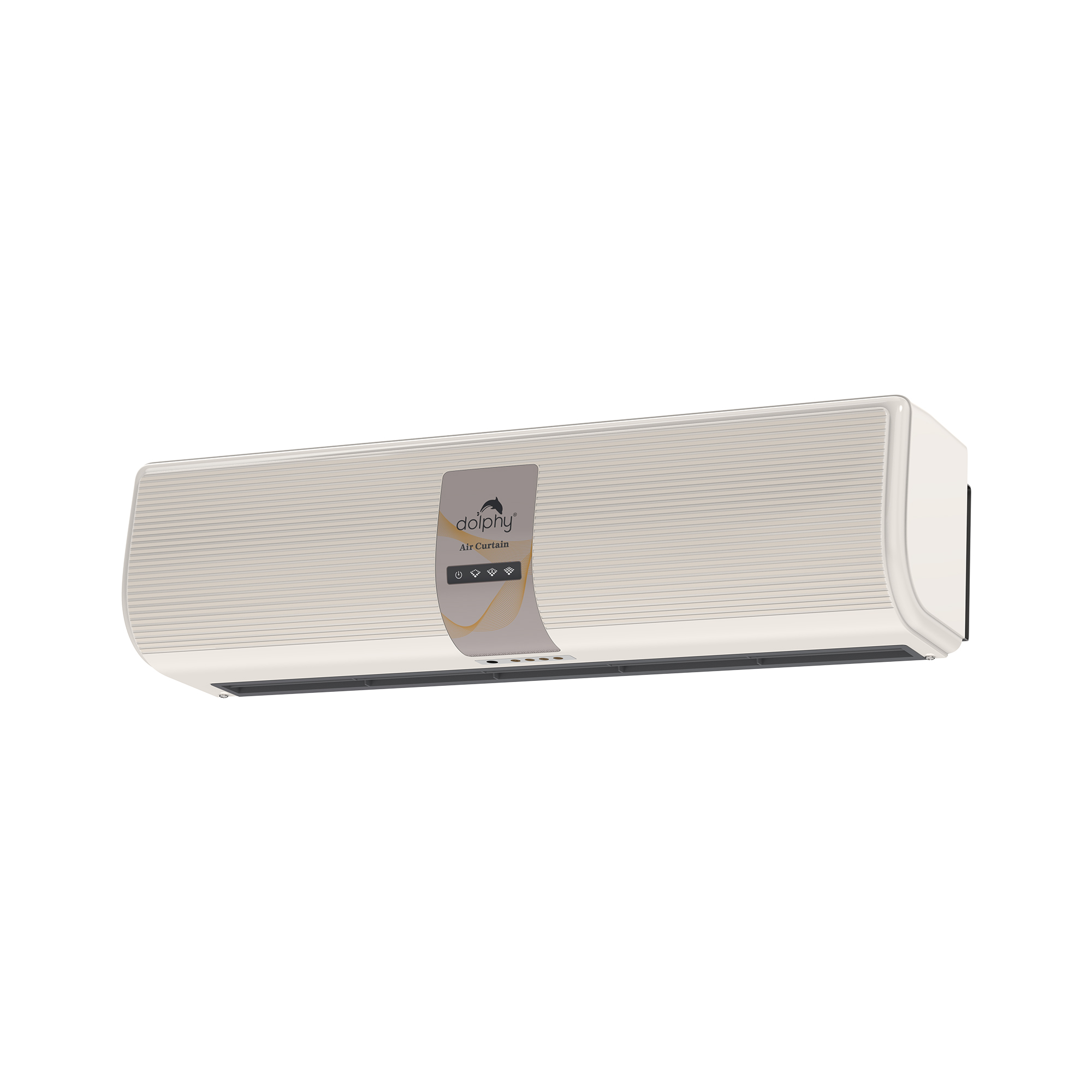

The Dolphy ABS Sensor Air Curtain with Remote Control is a modern and efficient solution to keep indoor environments clean and comfortable. Made from high-quality ABS material, this air curtain is lightweight, durable, and stylish. It features an inbuilt sensor and remote control for easy and automatic operation, ideal for doors in shops, offices, hospitals, and restaurants.
With high air velocity (21 m/s) and low noise levels (47–55 dB), this air curtain prevents dust, insects, and outside air from entering. Available in sizes from 3ft to 5ft, it suits door heights up to 10 feet. If you’re searching for a trusted air curtain supplier in India or comparing air curtain prices, Dolphy offers excellent value.
This product is also a smart choice for those looking for an air curtain sensor, air cutter machine, or air curtains for doors. Built for performance, it’s perfect for energy-saving and hygiene control.
They are used in various industries such Food Processing Industries Pharmaceutical ,Hotel & Restaurants ,Hospitals/Laboratories ,Malls, Supermarket, Showrooms, Theaters /Auditoriums ,Clean Room , Cold Storage ,Computer Rooms & Facilities etc.
