Model No. | DACN0010 | DACN0011 | DACN0015 |
---|---|---|---|
Dimension (mm) | 916 x 360 x 370 | 1220x 360 x 370 | 1526x360x370 |
Max. Air Velocity At Nozzle | 24 m/s | 24 m/s | 24 m/s |
Noise Level DB | < 65 db | < 66 db | < 68dB |
Body Material | Metal | Metal | Metal |
Width Size | 3 Feet | 4 Feet | 5 Feet |
No. Of Blowers | 2 | 3 | 4 |
No. Of Motors | 1 | 2 | 2 |
HP | 1.5 | 2.24 | 3 |
Voltage | 440V/50Hz | 440V/50Hz | 440V/50Hz |
Power (W) | 1100W | 1650W | 2000W |
Phase | Three | Three | Three |
RPM (Max/Min) | 2700 | 2700 | 2700 |
Blower Material | Metallic | Metallic | Metallic |
CFM | 2200 | 2950 | 3680 |
Effective Height | 20-22 Feet | 20-22 Feet | 20-22 Feet |
Weight Kgs. | 44 | 51 | 64 |

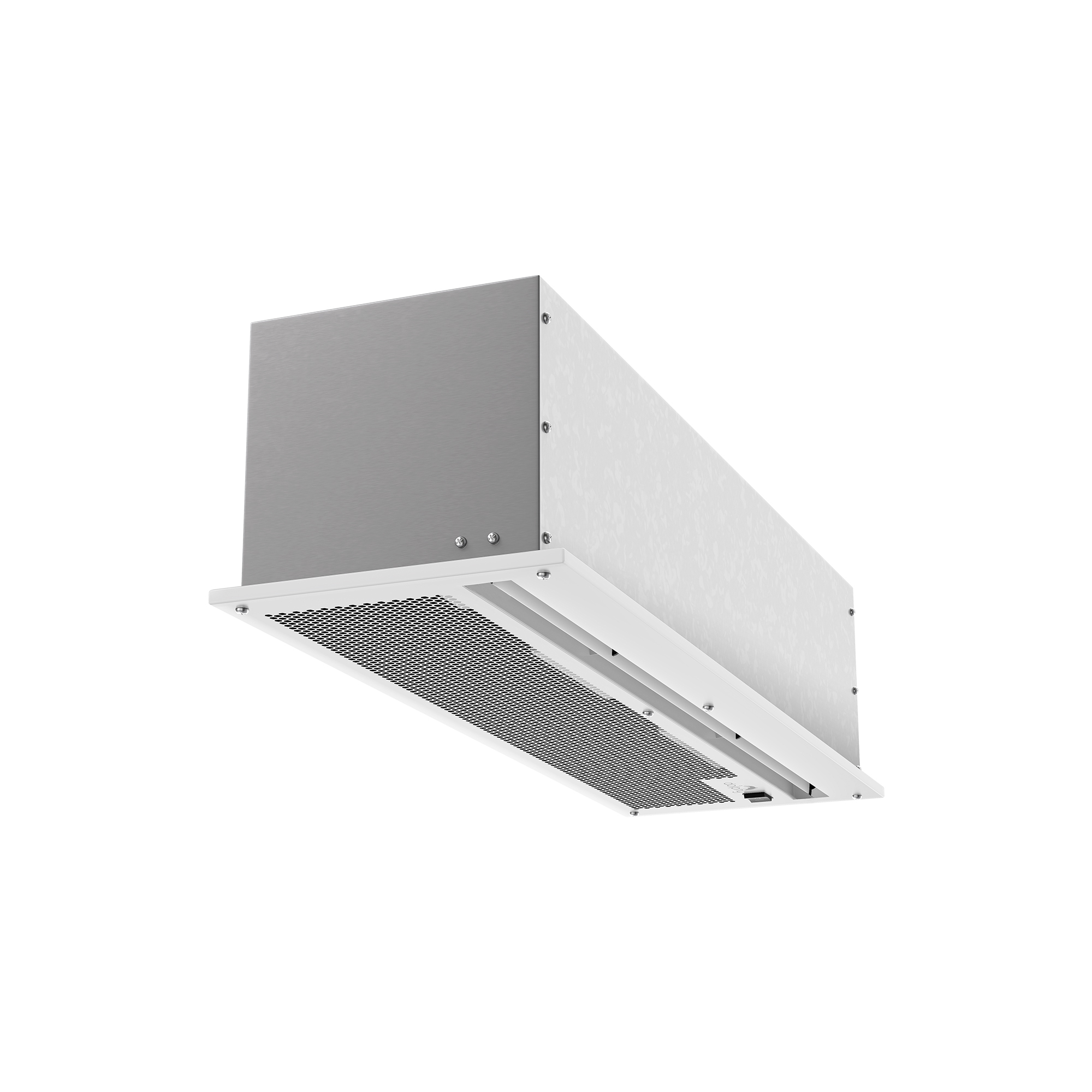

Dolphy Silver High Speed Air Curtain – DACN0010/DACN0011/DACN0015 is a premium air control solution designed for large commercial and industrial spaces. Built with a sturdy metallic body and high-speed motors, this ceiling-mounted air curtain ensures effective airflow to block dust, insects, and outside air—helping maintain hygiene and energy efficiency indoors.
Ideal for doorways up to 20–22 feet high, this model delivers a powerful air velocity of 24 m/s and operates quietly under 68 dB. Available in 3, 4, and 5-foot widths, it suits a range of entrances and facility types like malls, warehouses, hotels, and hospitals.
Key Features:
• Max Air Velocity: 24 m/s
• Power: 1100W–2000W | Voltage: 440V / 50Hz
• Motor: High-speed metallic blowers (2700 RPM)
• Effective Height: 20–22 Feet
• Noise Level: <68 dB | Body Material: Metal
• Phase: Three-phase | Durable & Reliable
Whether you’re searching for a high-performance air curtain, reliable air cutter machine, or trusted air curtain supplier in India, this model combines power, durability, and energy savings
