| Model No. | DACN0004 | DACN0005 | DACN0006 | DACN0017 |
|---|---|---|---|---|
| Dimension (mm) | 900 x 230 x 212 | 1200 x 230 x 212 | 1500 x 230 x 212 | 1800 x 230 x 212 |
| Max. Air Velocity At Nozzle | 21 m/s | 21 m/s | 21 m/s | 21 m/s |
| Noise Level DB | 50 - 70 db | 50 - 70 db | 50 - 70 db | 50 - 70 db |
| Body Material | Metal | Metal | Metal | Metal |
| Width Size | 3 Feet | 4 Feet | 5 Feet | 6 Feet |
| No. Of Blowers | 3 | 4 | 5 | 6 |
| No. Of Motors | 2 | 2 | 3 | 3 |
| HP | 0.56 | 0.76 | 0.95 | 1.12 |
| Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| No. Of Shafts | 1 Single + 1 Double | 2 Double | 1 Single + 2 Double | 3 Double |
| Power Wattage | 410W | 560W | 700W | 820W |
| Phase | Single | Single | Single | Single |
| RPM (Max/Min) | 2700 / 2100 | 2700 / 2100 | 2700 / 2100 | 2700 / 2100 |
| Blower Material | ABS | ABS | ABS | ABS |
| CFM | 825 | 1100 | 1380 | 1380 |
| Effective Height | 7-10 Feet | 7-10 Feet | 7-10 Feet | 7-10 Feet |
| % Insect / Dust Rejection | 75% | 75% | 75% | 75% |
| Weight Kgs. | 19 | 22 | 26 | 32 |

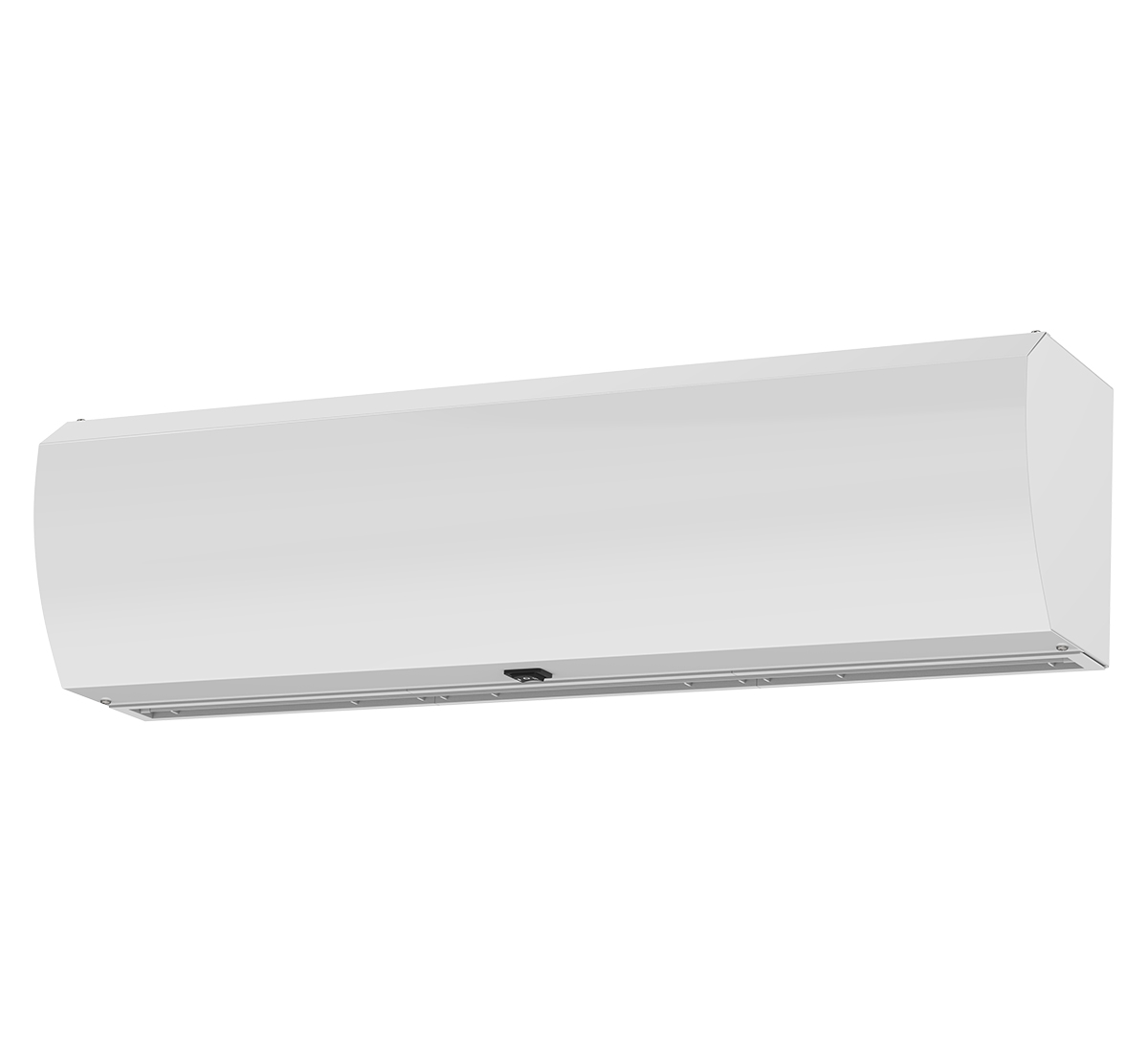

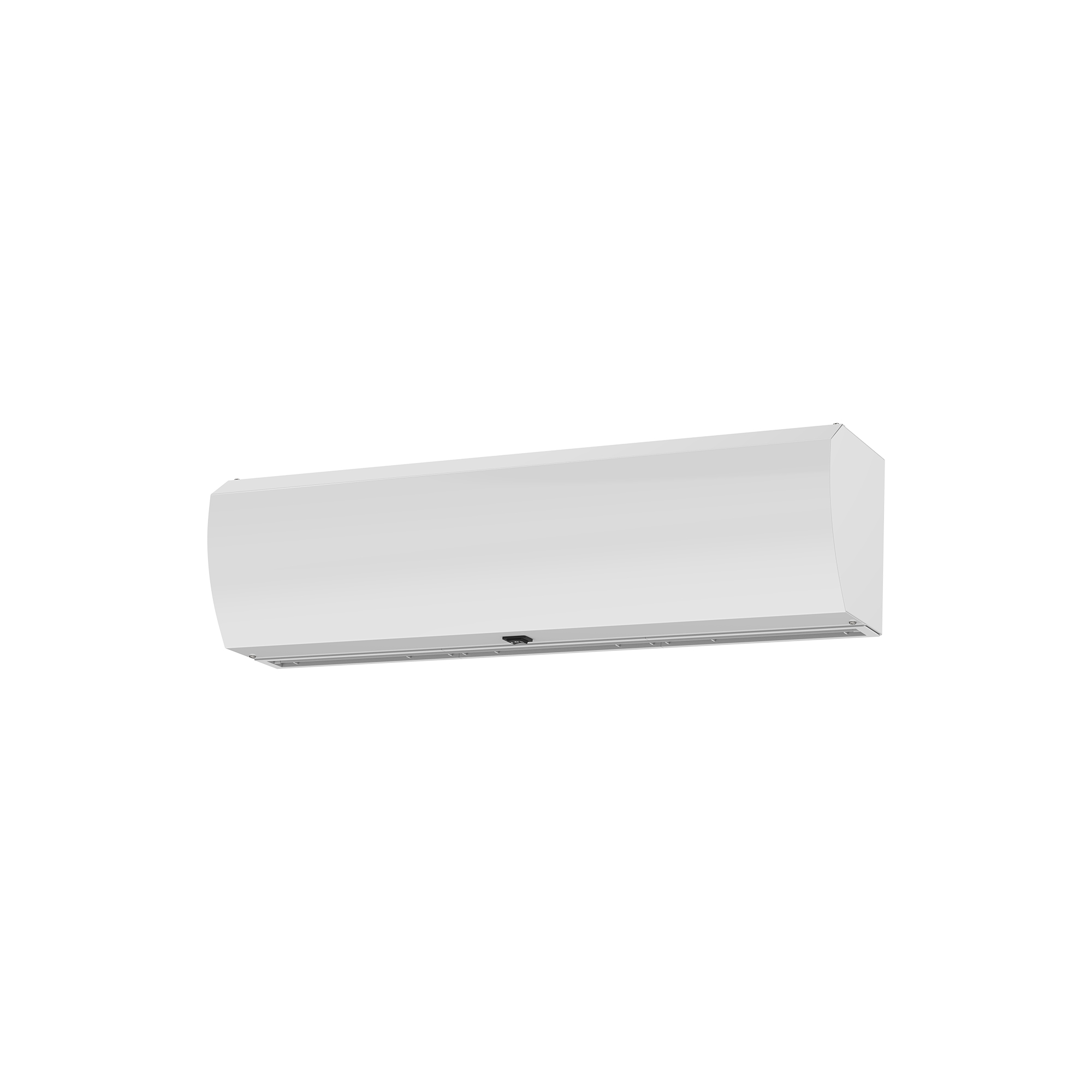

The Dolphy White Metal Air Curtain is designed to maintain clean and comfortable indoor environments by preventing dust, insects, and hot or cold air from entering. Suitable for doors up to 7–10 feet high, this air curtain is perfect for shops, offices, hospitals, and commercial spaces.
Built with a strong metal body and high-quality ABS blowers, it offers quiet operation with a noise level of 50–70 dB. Available in 3 to 6 feet widths, each model features powerful motors, single-phase operation, and high air velocity of 21 m/s for effective coverage.
As one of the trusted air curtain manufacturers, Dolphy delivers durability and performance. Whether you're looking for air curtains for doors or want to explore air curtain prices in India, this model offers great value.
Trusted air curtain supplier in India. Explore this air cutter machine for a more hygienic space.
