Model No |
DACN0012 |
DACN0013 |
DACN0014 |
Body Material |
Metal |
Metal |
Metal |
Types |
on/off Switch, |
on/off Switch, |
on/off Switch, |
Width Size |
3 feet |
4 feet |
5 feet |
Voltage/Frequency |
440v/50hz |
440v/50hz |
440v/50hz |
Input Power |
415 W |
580 W |
705 W |
Air Flow |
21 m/s |
21 m/s |
24 m/s |
Mount Type |
Ceiling Mounted |
Ceiling Mounted |
Ceiling Mounted |
Unit Size |
900x230x212 mm |
1200x230x212 mm |
1500x230x212 mm |

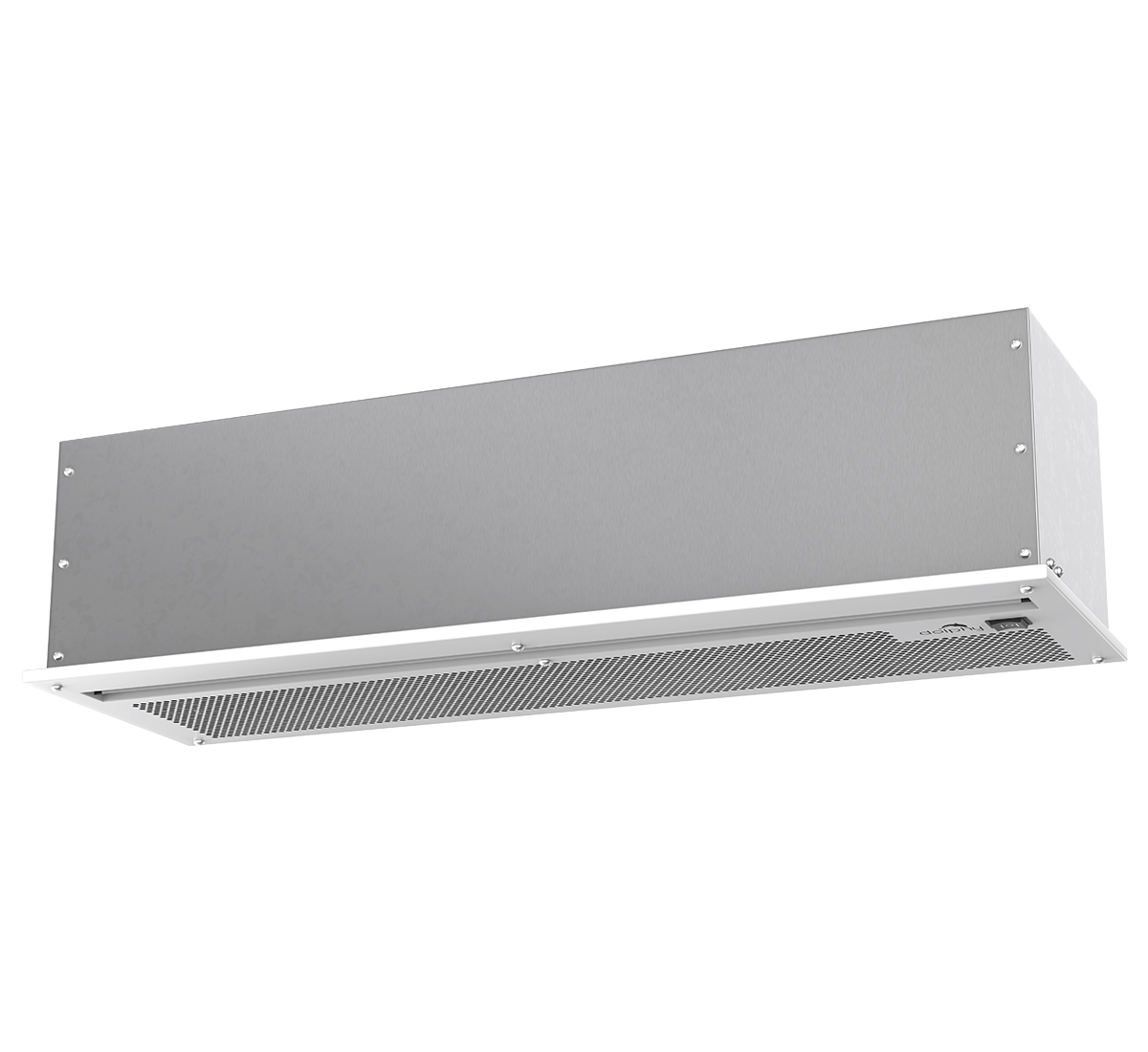

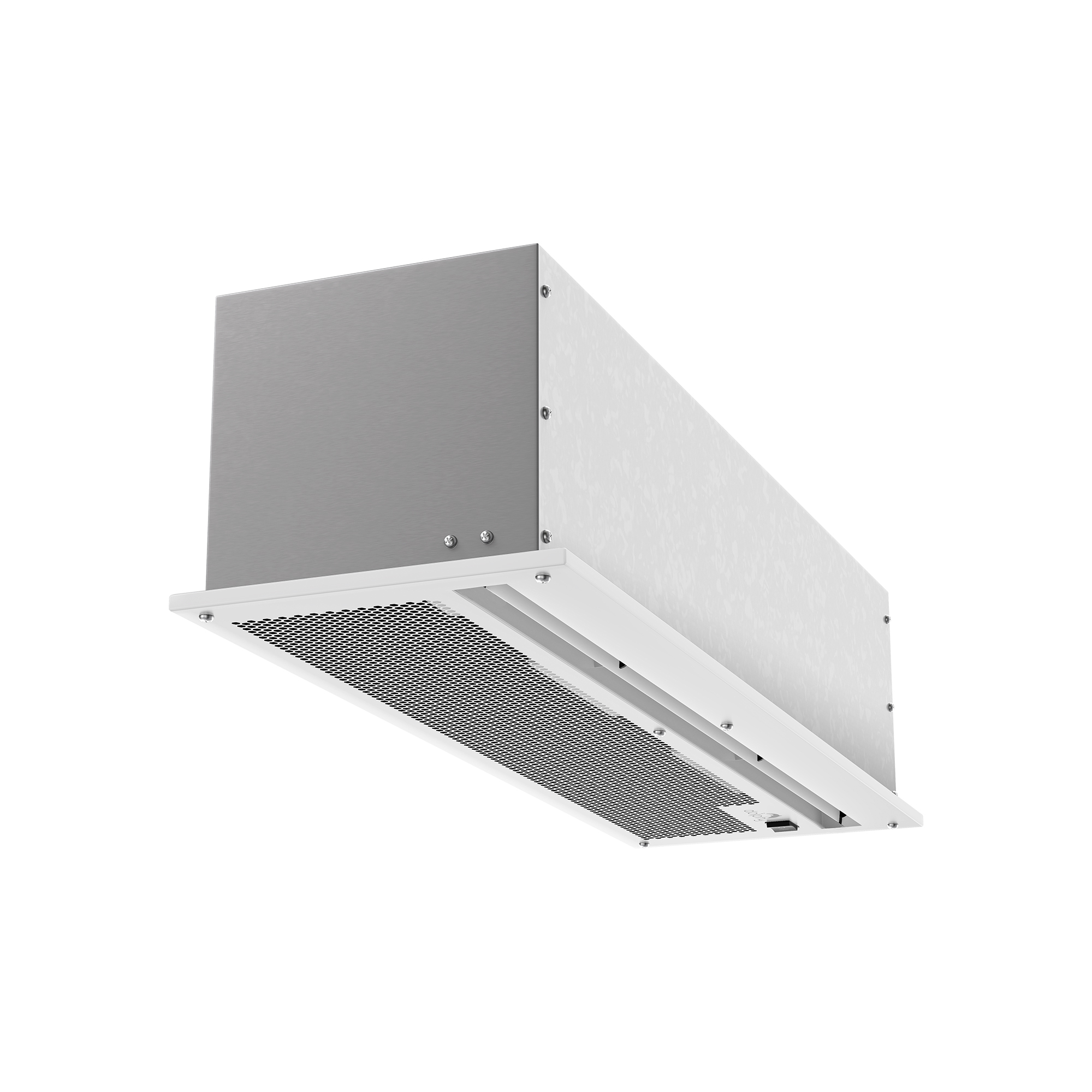

- The dolphy ceiling mountde air curtain unit is compact and is specifically designed for concealing in ceiling or wall bulkheads or anywhere in an environment where it is advantageous to conceal the air curtain unit. This air curtain unit is suitable for mounting horizontally especially suited to:
- Any recessed application
- Retail environments
- Office and other commercial spaces
- air curtain unit benefits:Dolphy understands that there are environments in which it is not desirable to see the air curtain unit – such as period buildings or those where the designers and architects prefer a hidden (in-wall or in-ceiling) air curtain unit – that nonetheless require genuine air handling.
- A discreet air curtain unit that is ideal for recessed use, the Airscreen Type C air curtain unit provides exceptional performance whilst minimising the impact on the building appearance.
- Dolphy specialise in providing the convenience of sophisticated modern technology while preserving the peace of mind of designers and the aesthetics of the space.
- The Airscreen Type C air curtain unit is also easy to service, with all internal components accessible via the return grille for swift and easy maintenance.
Air curtain saves the Air conditioned Air from moving out, and saves on the Electricity cost. | It is a Centrifugal fan enclosed in a vortex casing making a powerful curtain of Air at the entrance to separate the interior and external thermal conditions. | It makes Air Conditioning more effective.
