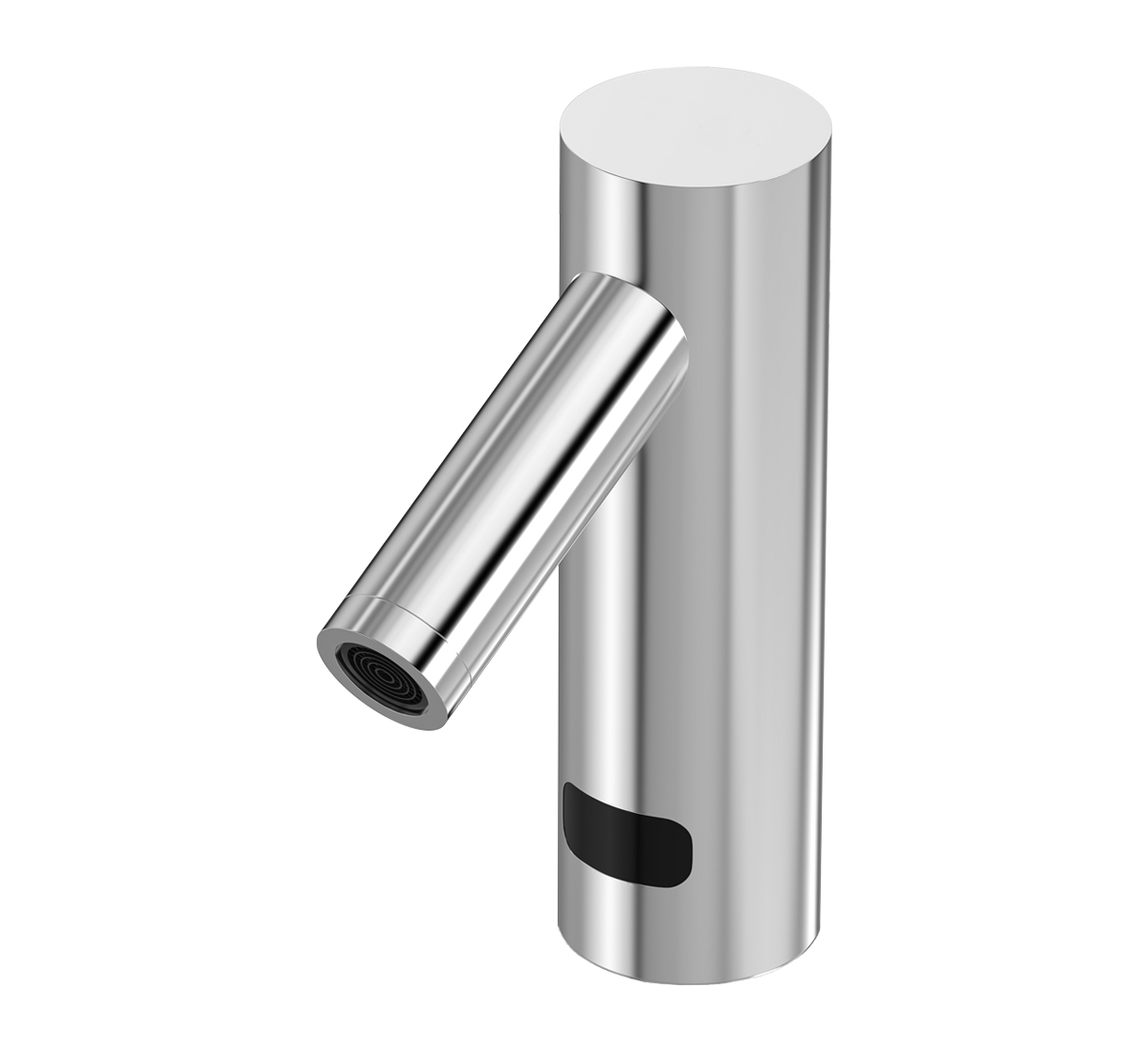

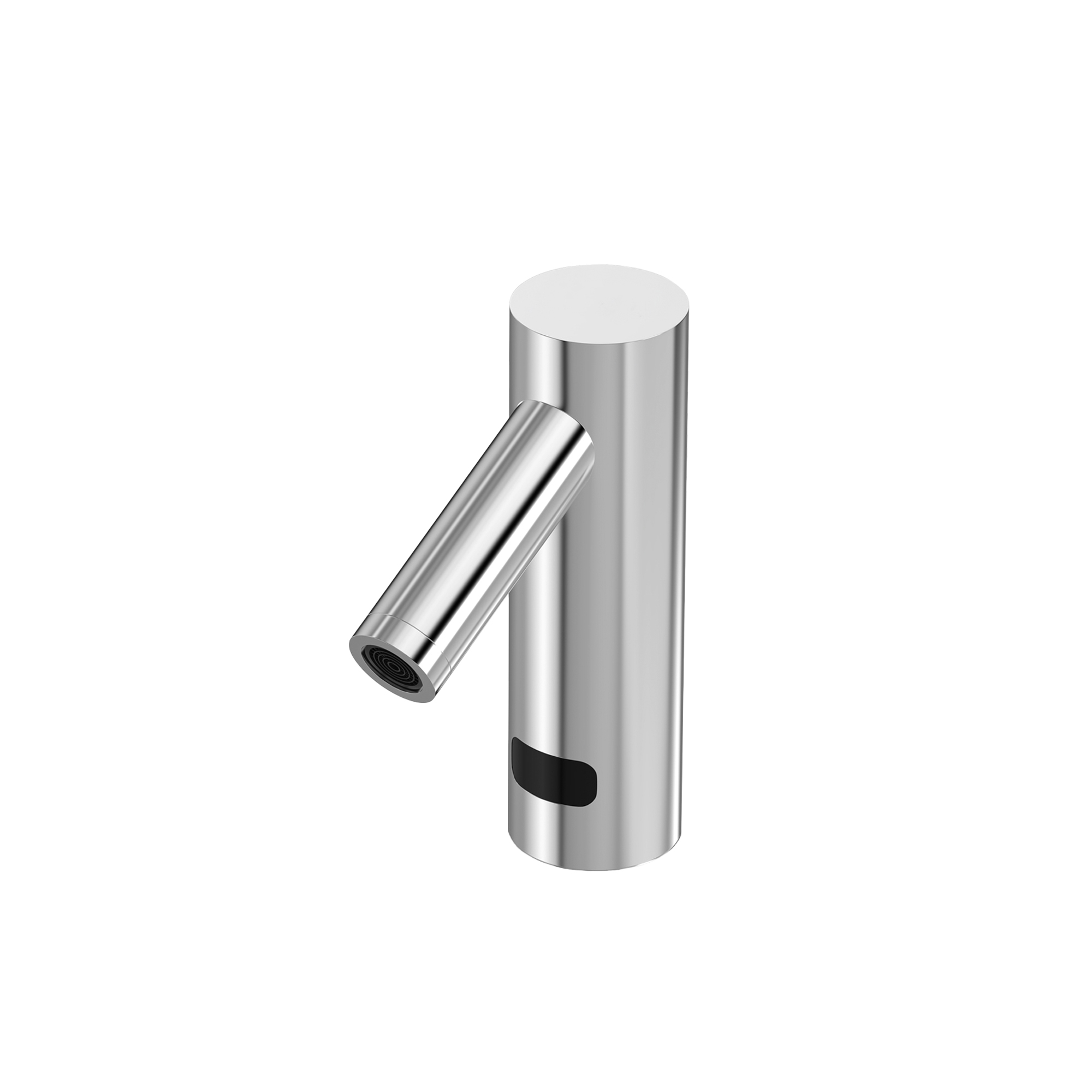

Automatic Deck Mounted sensor tap Automatic Deck Mounted sensor tap

Automatic Deck Mounted sensor tap

DAST0016-NW

Model No. DAST0016-NW
Color Silver
Faucet Material Brass
Finish Chrome-Plated
Mount Type Basin Mount
Operation Infrared Sensor
Control Box Diameter Of 'Inlet' Pipe: G1/2"
Control Box Diameter Of 'Outlet' Pipe: G1/2"
Water Pressure Range

0.5 (Min) - 5 Bar (1 Bar Or Above For Best Performance)

Dual Operation Electrical + Battery
Voltage DC6V Or AC220V-240V (6V Output)
Battery Consumption

(DC) 4 x AA Duracell Battery (Not Included)

Power Consumption 0.03 W
Sensing Distance 10-20cm
Response Time 1 Second
Silent Consumption 0.003mW
Environment Temperature 1-45 C
Flow Rate 1.0L - 1.5L/min
Water Temperature 0-80 Deg Celsius
Noise Class 1
Flexible Supply Hose Yes

Features of the Automatic Deck Mounted Sensor Tap

Infrared Sensor Operation: Touch-free activation ensures hygienic water flow, reducing spread of germs.

Dual Power Options: Operates on DC 6V (via 4×AA batteries) or AC 220-240V with a 6V output.

Low Power Consumption: Just 0.03 W during use; silent standby mode with consumption around 0.003 mW.

Sensor Range & Response: Detects hands from 10-20 cm; response time approx 1 second.

Water Pressure Range: Works from 0.5 Bar to 5 Bar, though performance is best from 1 Bar upward.

Flow Rate: 1.0 – 1.5 L/min, balancing water savings with adequate flow.

Temperature Tolerance: Safe for water temperatures between 0-80°C, and ambient environment from 1-45°C.

Build & Finish: Brass body, chrome-plated finish; basin (deck) mount; includes flexible supply hose.

Pipe Sizes: G½" inlet & outlet.

Noise Performance: Class 1 (quiet), ideal for both public washrooms and luxury installs.



Benefits of Using an Automatic Deck Mounted Sensor Tap

Hygiene & Health Safety
Because you don’t need to touch the tap, risk of cross-contamination is much lower. Automatic deck mounted sensor tap keeps surfaces germ-free.

Water Conservation
With sensor control, water runs only when needed — reduced water wastage and lower utility bills.

User Convenience
Instant, hands-free operation is especially useful in public restrooms, commercial kitchens, hospitals, schools, and elder care facilities.

Modern & Aesthetic Appeal
Sleek chrome finish, clean lines, and deck installation give a high-end, modern look.

Durability & Reliability
Brass body and high-quality finishing materials, backed by proper operating specifications, mean longer service life.

Versatility
Works in a range of water pressures and temperatures; battery or AC power makes installation flexible.


Use Cases

-Public washrooms in malls, airports, stations

-Hospitals, clinics, and labs (where hygiene is critical)

-Schools, colleges, hostels

-Luxury hotels, showrooms and high-end residential bathrooms

-Food processing or restaurant areas

-Office & corporate restrooms
